Auto-clipping machine
Model: SP-2-1
Features
Clipper specially designed for netting fruits and vegetables such as oranges, mandarins, lemons, grapefruits, potatoes, onions, tomatoes, peppers.
Among its numerous advantages, we must point out the following ones:
• Possibility of an automatic change of tube, controlled only by one motor
• Net extraction through a sliding system with two speeds: a slow one for making the pack and a fast one for getting back the remaining net and returning to the start position.
• Very regular pack size
• One-use strip band cassette which can be easily and rapidly changed
• Control panel with easy and friendly use

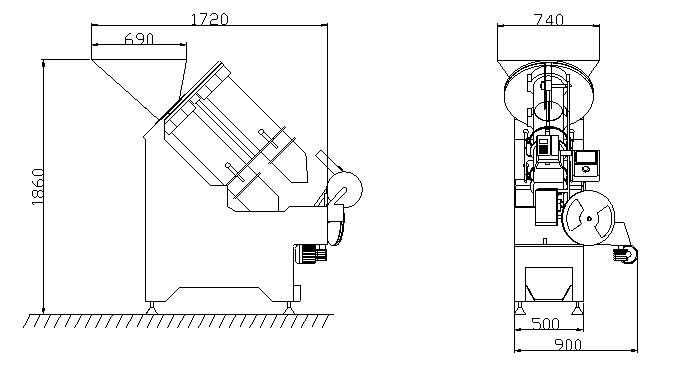

LAYOUT
Clipper specially designed for netting fruits and vegetables such as oranges, mandarins, lemons, grapefruits, potatoes, onions, tomatoes, peppers.
Among its numerous advantages, we must point out the following ones:
• Possibility of an automatic change of tube, controlled only by one motor
• Net extraction through a sliding system with two speeds: a slow one for making the pack and a fast one for getting back the remaining net and returning to the start position.
• Very regular pack size
• One-use strip band cassette which can be easily and rapidly changed
• Control panel with easy and friendly use
LAYOUT
Parameter (SP-2-1) | |
OUTPUT: |
Up to 35 bpm (depending on the product and size of the bag) |
Voltage | Single phase 220 |
Frequency | 50/60 Hz |
Installed Power | 2.9 Kw |
Min. Air Pressure | 6 bar |
Average Air Consumption | 100L/min |
Weight | 425 Kg |
