Thermoforming Map Package Machine
Model: SP-390R
![](../up_pic/2018_11_23_43729_93510.jpg)
![](../up_pic/201811239374239.jpg)
Main Functions (SP-390R)
1.Photoelectric follow-up: color cover film or optical film can be used for packaging, which can reduce the cost and upgrade the products;
2.With modular moulds, They can be replaced easily and can be used on several machines. The moulds have a cooling system;
3.According to user’s requirements for product packaging, nitrogen or other protective gases can be filled into the package after vacuumizing;
4.According to user’s requirements for product packaging, the machine can be provided with an automatic code printing system;
5.The German Busch Pump is used on the machine, with high degree, steady quality and good durability;
6.With high quality clamping chains, this machine is applicable for stretch shaping and special packaging of soft films, hard films and semi-hard films of different thickness;
7.The machine has options of punching advanced transverse and longitudinal according to user’s requirement or cutting system, the replacement and operation is easy and simple;
8.Fitted with a scrap recycling system, good environment and health can be maintained.
Application

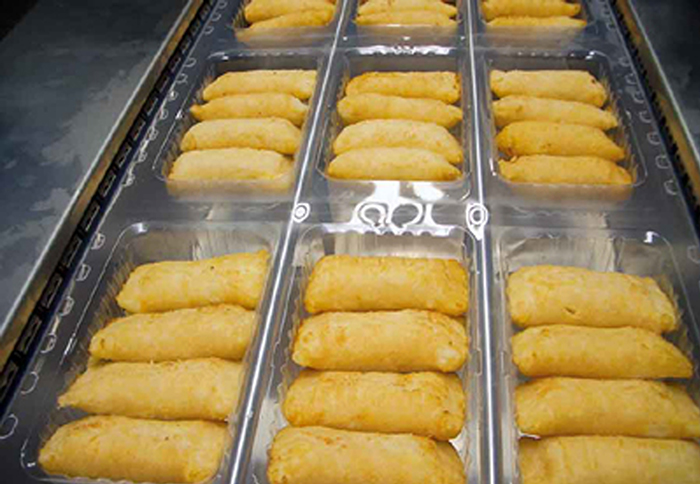

This packaging machine is a fully automatic vacuum packaging machine and is applicable for vacuum, gas-filling and skin packaging of foods, meat products, seafoods,
fruits, vegetables, pickles, cooled meat, medicine products, metal elements, and medical apparatus
Control System
This machine has Omron PLC, color touch screen and Omron servo motor or Omron frequency control of motor speed, German Busch Pump, German Festo Pneumatic System,
and all its electrical parts are imported from Japan, Europe and Taiwan. It also has perfect safety protection devices.
Parameter SP-390R
|
|
Speed
|
4-5 cycles/min
|
Depth range
|
50mm
|
Bottom film width
|
390 mm
|
Top film width
|
380mm
|
Core diameter
|
75mm
|
Maximum roll diamete
|
upper roll 350mm /lower reel 400mm
|
Electrical specifications
|
3×220V/380V±10%+Neutral+Ground-50/60Hz
|
Electrical power
|
10-20Kw
|
Pneumatic consumpiton
|
800-1000L/min /6bars
|
Approximate weight
|
800-1500Kg
|
